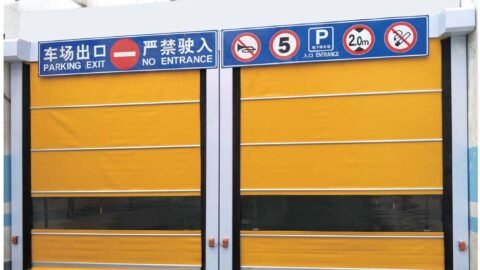

High-Speed Rolling Door
Rapid PVC rolling doors (0.6–1.2 m/s) and special fire-rated rolling shutters (≥4h) — speed, sealing and fire protection in one line.
Rapid PVC rolling doors (0.6–1.2 m/s) and special fire-rated rolling shutters (≥4h) — speed, sealing and fire protection in one line.
Photos show standard models — custom colors, sizes and branding available on request.
One product line for openings that need speed and openings that need fire protection. Rapid PVC rolling and stacking doors cycle at 0.6–1.2 m/s, sealing in conditioned air and keeping out dust, insects and noise. Special fire-rated rolling shutters use a dual-track structure — one rolling motor driving two parallel axles with an air insulation layer between the curtain faces — built on aluminum-silicate fiber cloth with a fire-resistant coating, heat-radiation fabric and an insulating fiber blanket: ≥4 hours of fire resistance with no water curtain required, a direct replacement for firewalls.
Key Features| Rapid models | 0.6–1.2 m/s, frequency-converter controlled |
|---|---|
| Fire resistance (fire-rated models) | ≥ 4 hours |
| Backfire temperature rise | Average <55.6°C, single point <63.6°C |
| Shutter operation speed | 2–7.5 m/min |
| Wind pressure | Per GB14102-2005 |
| Curtain (fire-rated) | Aluminum-silicate fiber cloth, fire-resistant coating, heat-radiation fabric |
| Control | Manual / electric / linkage / automatic lowering |
Fields not listed here: available on request — send your requirements for the full datasheet.
Detailed dimension drawings are provided with quotations. Standard heights: 1600mm (retractable gates), 1700mm (suspended gates); other models per the specification table. Send your opening size for a dimensioned drawing.

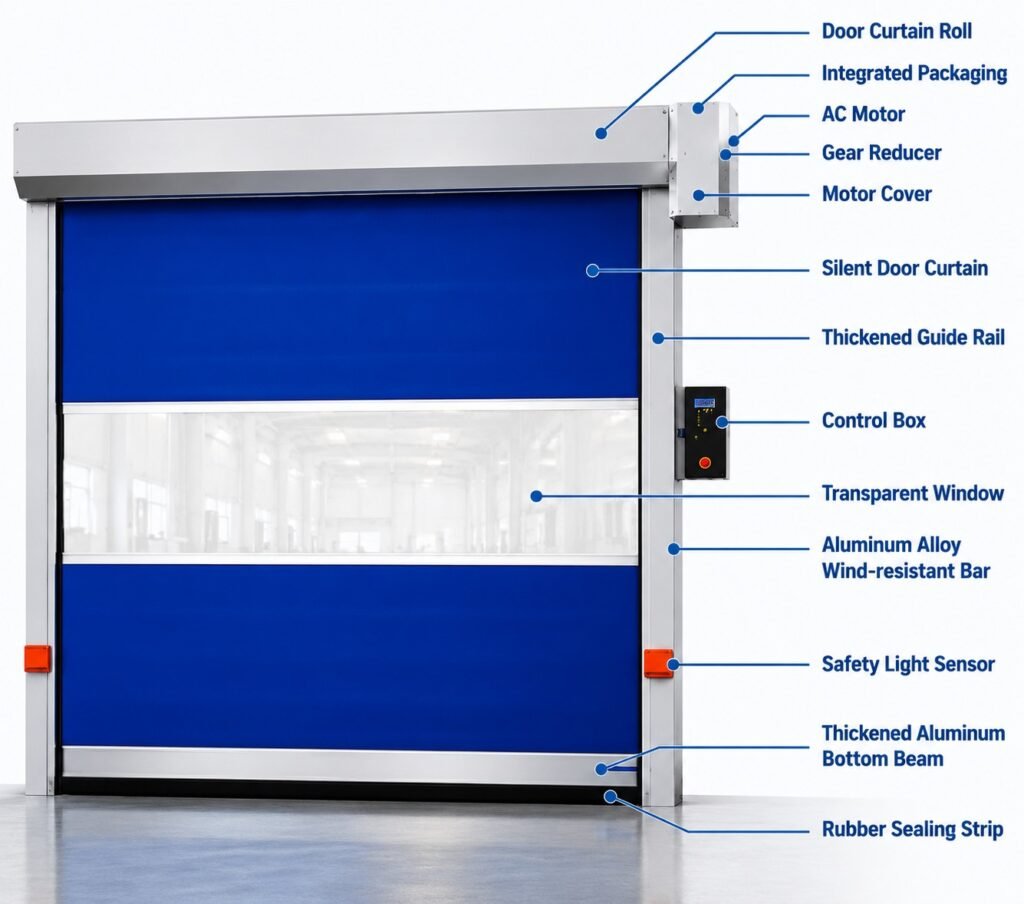

Rapid models: a frequency-converter-driven motor winds the PVC curtain onto the drum at 0.6–1.2 m/s. Fire-rated models: one rolling motor drives two parallel axles simultaneously (dual-track), with an air insulation layer between the curtain faces; in a fire event the shutter closes the compartment and the fiber curtain contains fire and smoke.
Every order ships with installation documentation. Foundation, electrical and wiring requirements depend on the model and the site — our engineers provide drawings and remote guidance for your project. Contact us for the installation manual of a specific model.
0.6–1.2 m/s, adjustable via the frequency converter — the curtain is open only seconds per cycle at busy openings.

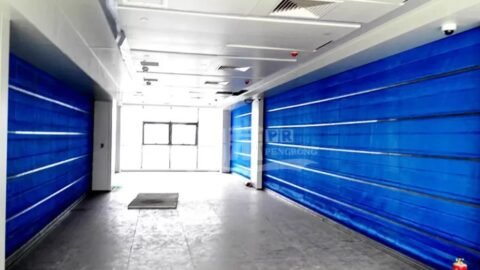

Fire-rated models achieve ≥ 4 hours of fire resistance, with backfire surface average temperature rise below 55.6°C and single-point rise below 63.6°C — they can replace a firewall with no water curtain required.
A dual-track structure: one rolling motor drives two parallel axles simultaneously, with an air insulation layer between the two curtain faces. The curtain is aluminum-silicate fiber cloth with a fire-resistant coating, heat-radiation fabric and an insulating fiber blanket.
Opening and closing speed 2–7.5 m/min.
Manual, electric, linkage control and automatic lowering; decorative fabric colors can be matched to the environment.

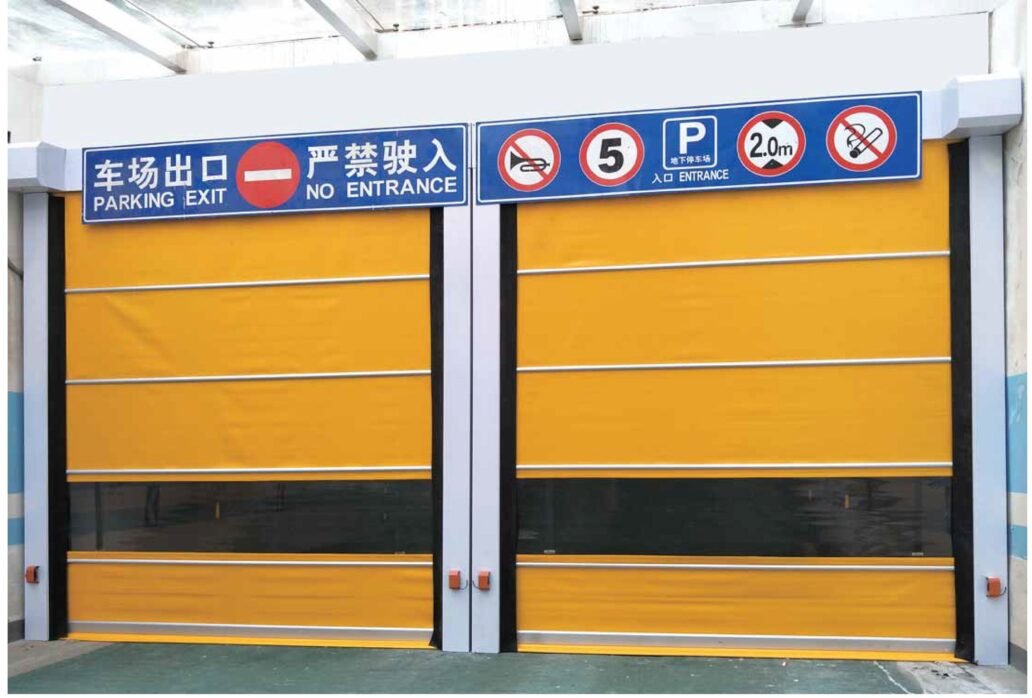

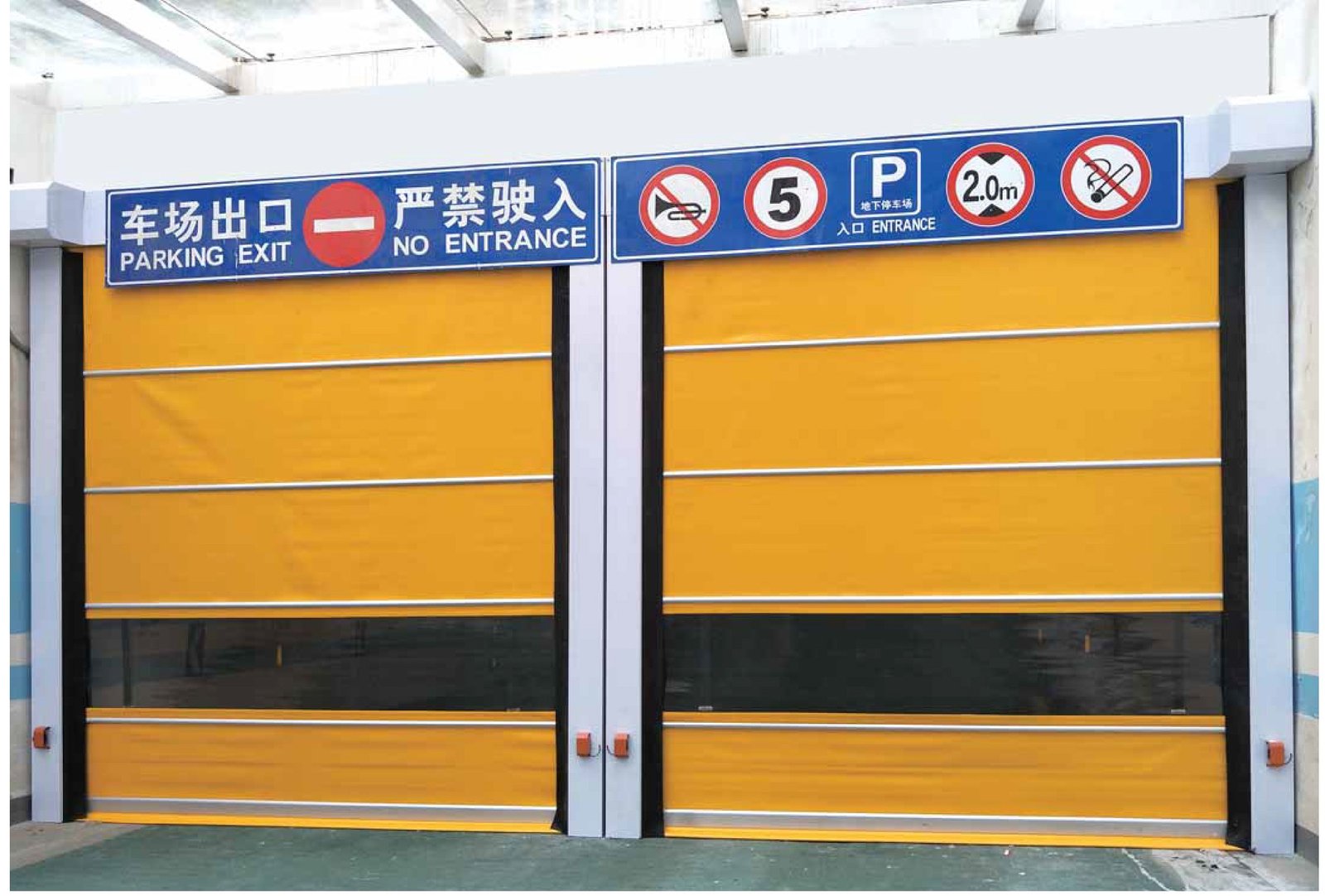

Garages, schools, hotels, shopping malls, food plants and logistics warehouses.
Aluminum-alloy retractable gates with a newly designed sliding-block drive — quieter, smoother and longer-lasting. 1600mm standard height.
Trackless cantilever sliding gates in special aluminum profile — silent, stable and smart-ready.
OEM/ODM available — colors, sizes, control modes and branding adapted to your market.
